Join lines and curves

You can create complex outlines by joining individual lines, polylines, arcs, and smoothed polylines that were created with FrameMaker drawing tools. Joining creates a single continuous curve. You can then change the new curve’s properties, such as its line width, pen and fill patterns, and color.

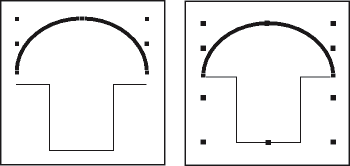

Objects drawn, and then positioned and selected

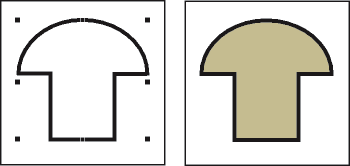

Objects joined, and then fill pattern added


1)Position the objects so that their endpoints touch. The ends of the lines or curves must be within 1 point of each other and the objects cannot be grouped. If necessary, choose Graphics > Gravity and zoom in.

2)Select the objects and choose Graphics > Join. The new curve takes on the properties of the last object selected before joining—for example, the object’s line width, pen pattern, or color. (In the preceding illustration, the last object selected before joining was the arc.)

note:   If you join lines or curves by mistake, immediately choose Edit > Undo. Joining creates a single continuous object that cannot be “unjoined” at a later time in the way that grouped objects can be ungrouped.
